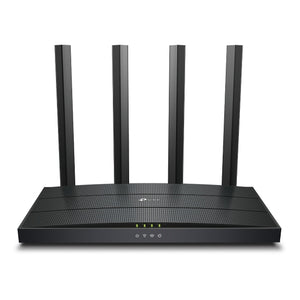

TP-Link Archer AX12 AX1500 Dual-Band Gigabit Wi-Fi 6 Router

TP-Link

  • Rs.12,090.00
    Unit price per
Shipping calculated at checkout.


TP-Link Archer Wi-Fi 6 Router



Higher Cost-Effective,
Better Performance Network.





Wi-Fi 6 Upgrades Everything

The advanced Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

FEATURES



  • Wi-Fi 6 Technology: Archer AX12 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
  • Next-Gen 1.5 Gbps Speeds: Archer AX12 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
  • Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.
  • More Reliable Coverage:  Achieve the strongest, most reliable WiFi coverage with Archer AX12 as it focuses signal strength to your devices using Beamforming technology and four antennas.
  • Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.
  • Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
  • Backward Compatible: Archer AX12 supports all previous 802.11 standards and all WiFi devices.



SPECIFICATIONS


SECURITY

Network Security
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
Guest Network
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network
VPN Server
  • OpenVPN
  • PPTP
WiFi Encryption
  • WPA2-PSK
  • WPA2-PSK/WPA-PSK
  • WPA3-Personal
  • WPA3-Personal/WPA2-PSK
  • WPA2-Enterprise
  • WPA/WPA2-Enterprise encryptions

WIRELESS

Standards
  • Wi-Fi 6
    • IEEE 802.11ax/ac/n/a 5 GHz
    • IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
  • AX1500
    • 5 GHz: 1201 Mbps (802.11ax)
    • 2.4 GHz: 300 Mbps (802.11n)
WiFi Range
  • 2-3 Bedroom Houses
    • 4× Fixed High-Performance Antennas
      • Multiple antennas form a signal-boosting array to cover more directions and large areas
    • Beamforming
      • Concentrates wireless signal strength towards clients to expand WiFi range
WIFI CAPACITY
  • High
    • Dual-Band
      • Allocate devices to different bands for optimal performance
    • OFDMA
      • Simultaneously communicates with multiple Wi-Fi 6 clients
    • Airtime Fairness
      • Improves network efficiency by limiting excessive occupation
    • 4 Streams
      • Connect your devices to more bandwidth
WORKING MODES
  • Router Mode
  • Access Point Mode

HARDWARE

Ethernet Ports
  • 1× Gigabit WAN Port
  • 3× Gigabit LAN Ports
Buttons
  • WPS/Reset Button
Power
  • 12 V ⎓ 1 A

SOFTWARE

Protocols
  • IPv4
  • IPv6
Parental Controls
  • URL Filtering
  • Time Controls
WAN Types
  • Dynamic IP
  • Static IP
  • PPPoE/ PPTP (Dual Access)/ L2TP (Dual Access)
Quality of Service
  • QoS by Device
Cloud Service
  • Auto Firmware Upgrade
  • OTA Firmware Upgrade
  • TP-Link ID
  • DDNS
NAT Forwarding
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
IPTV
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
DDNS
  • TP-Link
  • NO-IP
  • DynDNS
Management
  • Tether App
  • Webpage

SYSTEM REQUIRMENTS

  • Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
  • Cable or DSL Modem
  • Subscription with an internet service provider (for internet access)

TEST DATA

WiFi Transmission Power
  • CE:
    • <20dBm(2.4 GHz)
    • <23dBm(5.15 GHz~5.25 GHz)
  • FCC:
    • <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity
  • 5 GHz:
    • 11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm
    • 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm
    • 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm
    • 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm
    • 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm
    • 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm
    • 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm
  • 2.4 GHz:
    • 11g 6Mbps: -96 54Mbps: -80
    • HT20-MCS0: -97 MCS7: -78
    • HT40-MCS0: -94 MCS7: -75

PHYSICAL

Dimensions (W×D×H)
  • 8.5 × 4.6 ×1.3 in / 215 × 117 × 32 mm
Package Contents
  • Wireless Router Archer AX12
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide







Product Code: AX1500
Warranty: 1-Year Warranty



View details on manufacturer's website
