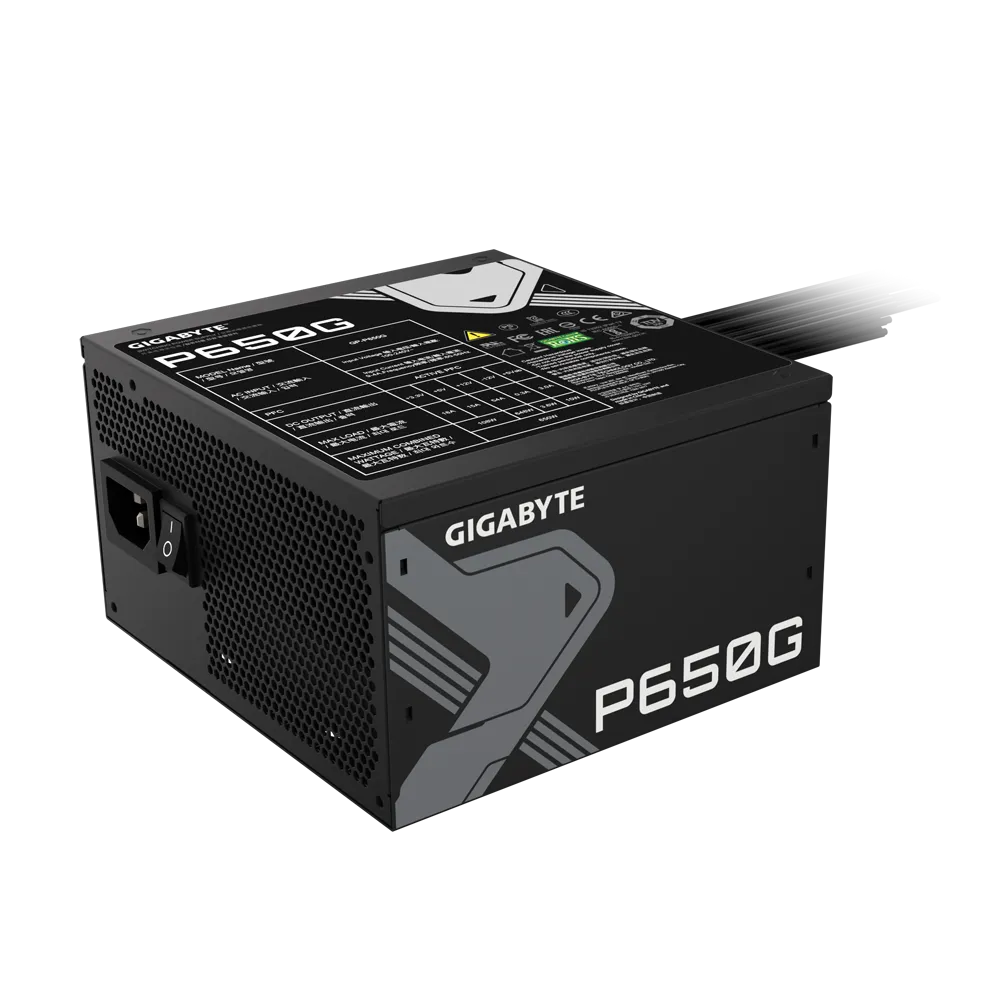

Gigabyte P650G 650W 80 PLUS GOLD Certified PSU
Gigabyte P650G 650W 80 PLUS GOLD Certified PSU
Model: GP-P650G
Type: Intel Form Factor ATX 12V
PFC: Active PFC(>0.9 typical)
Input Voltage: 100-240 Vac(full range)
Input Current: 9-4A
Input Frequency: 60-50 Hz
Output Capacity: 650W
Dimensions: 150 x 140 x 86 mm
Fan Type: 120mm Hydraulic Bearing (HYB) Fan
80 PLUS: Gold
Efficiency: 90% at typical load
MTBF: >100,000 hours
Protections: OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal: 100-500ms
Hold Up Time: >16ms
Cable Type: Flat, All black
Connectors:
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-e 6+2 Pin x 4 : 500mm+150mm*2
SATA x 6 : 500mm+150mm+150mm*2
4 Pin Peripheral x 3: 500mm+150mm+150mm*1
Product Code: GP-P650G
Warranty: 12 Month
