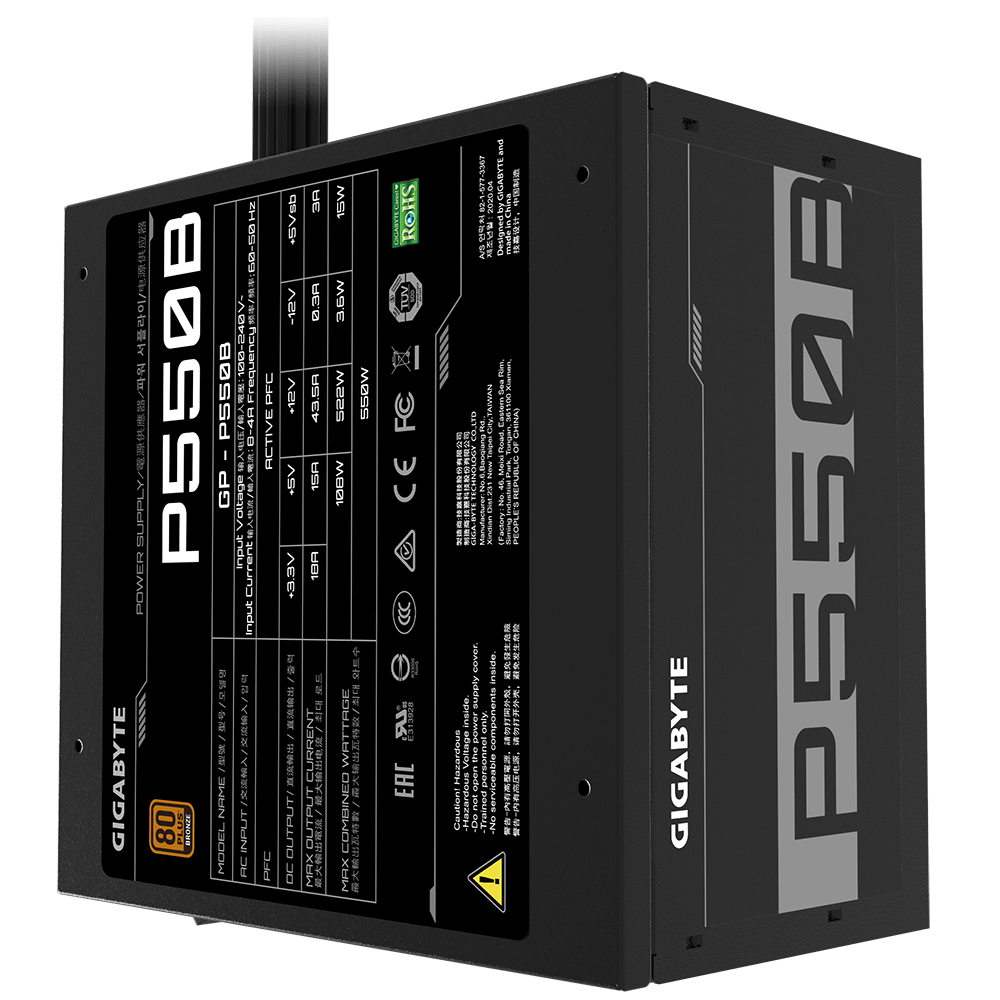

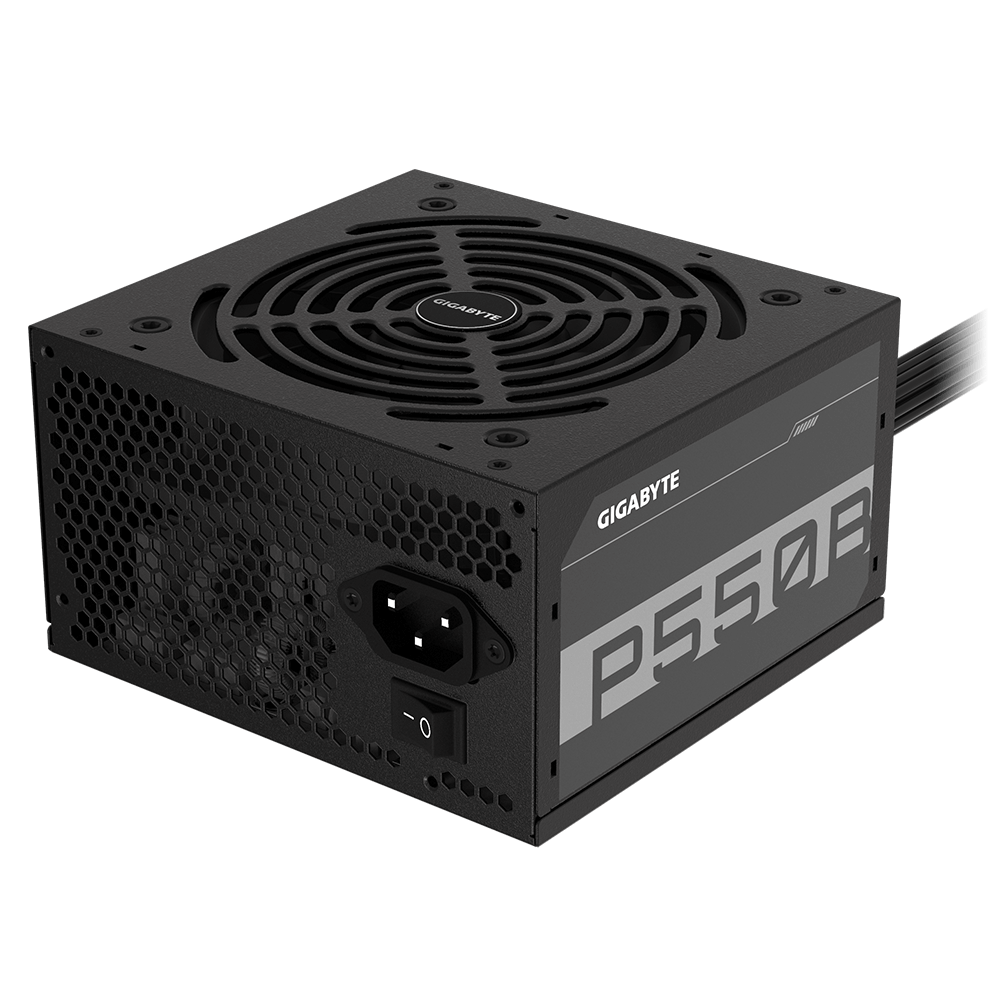

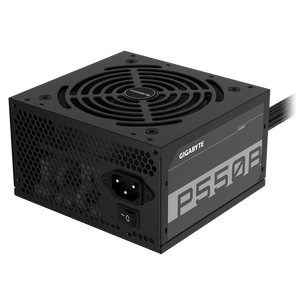

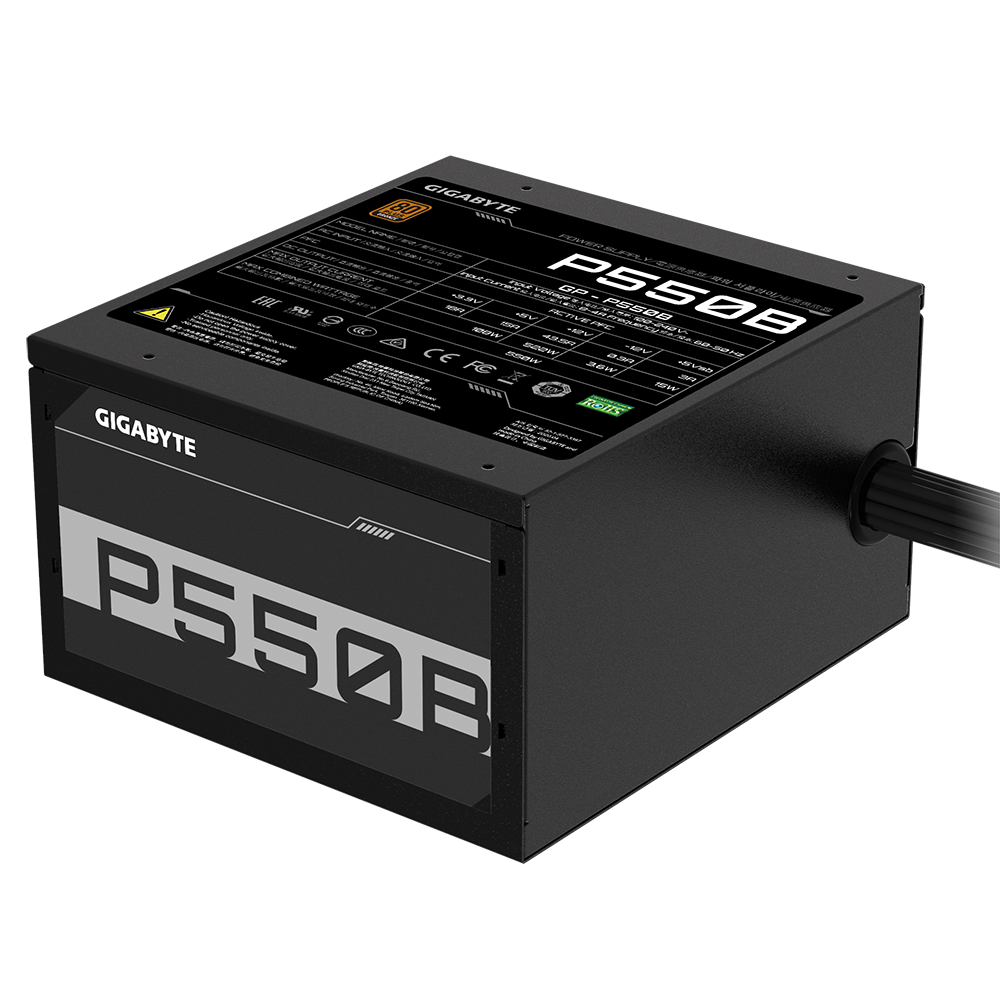

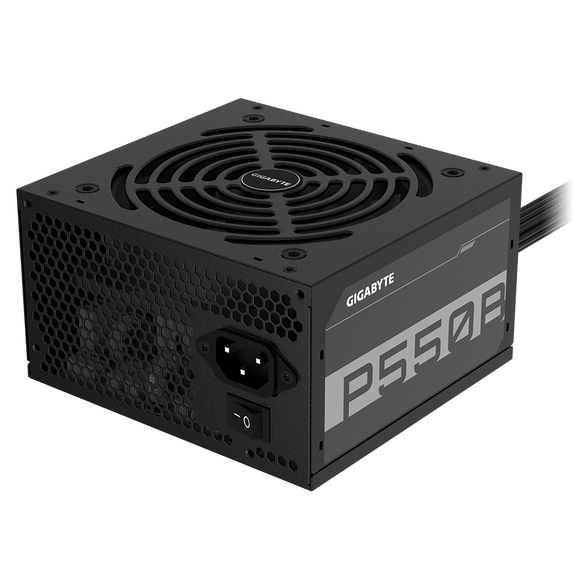

Gigabyte 550W Power Supply

80 PLUS Bronze certified.

120mm Silent Hydraulic Bearing (HYB) Fan.

80 PLUS BRONZE CERTIFIED

80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

RELIABLE FLAT CABLE

P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.

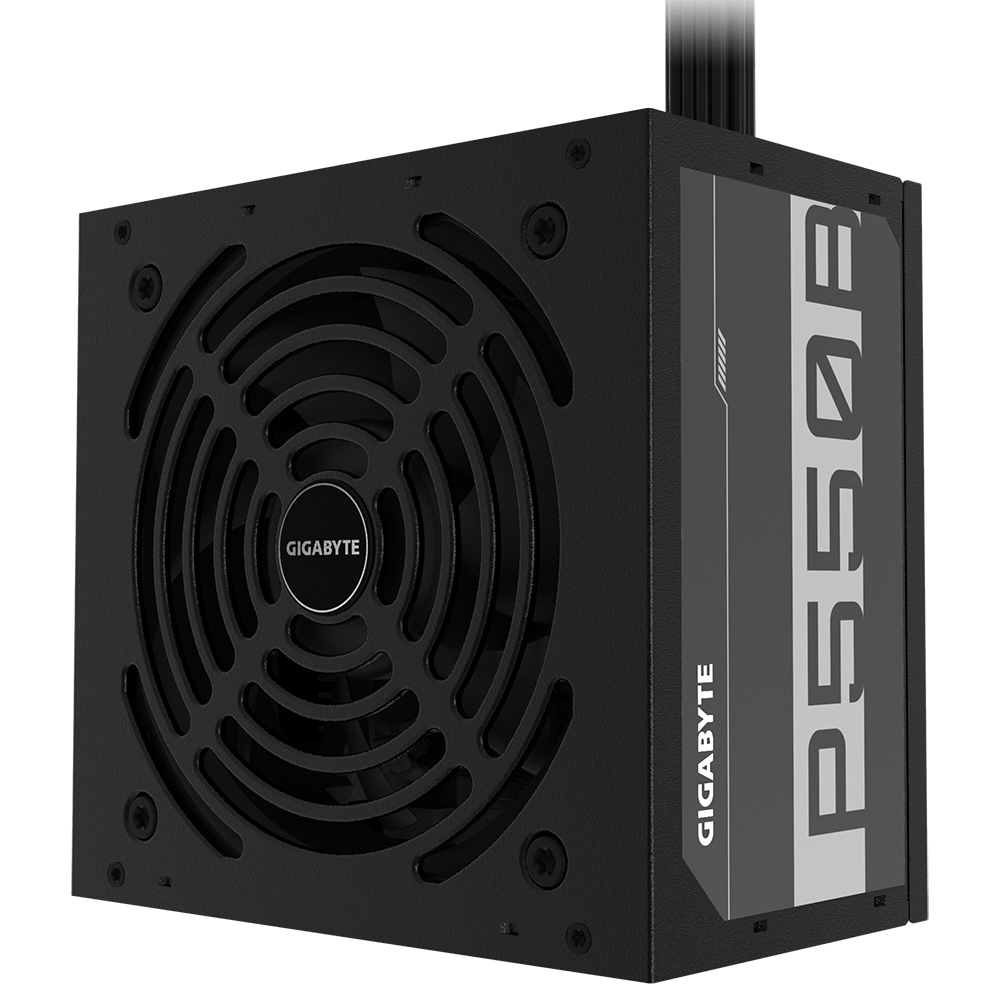

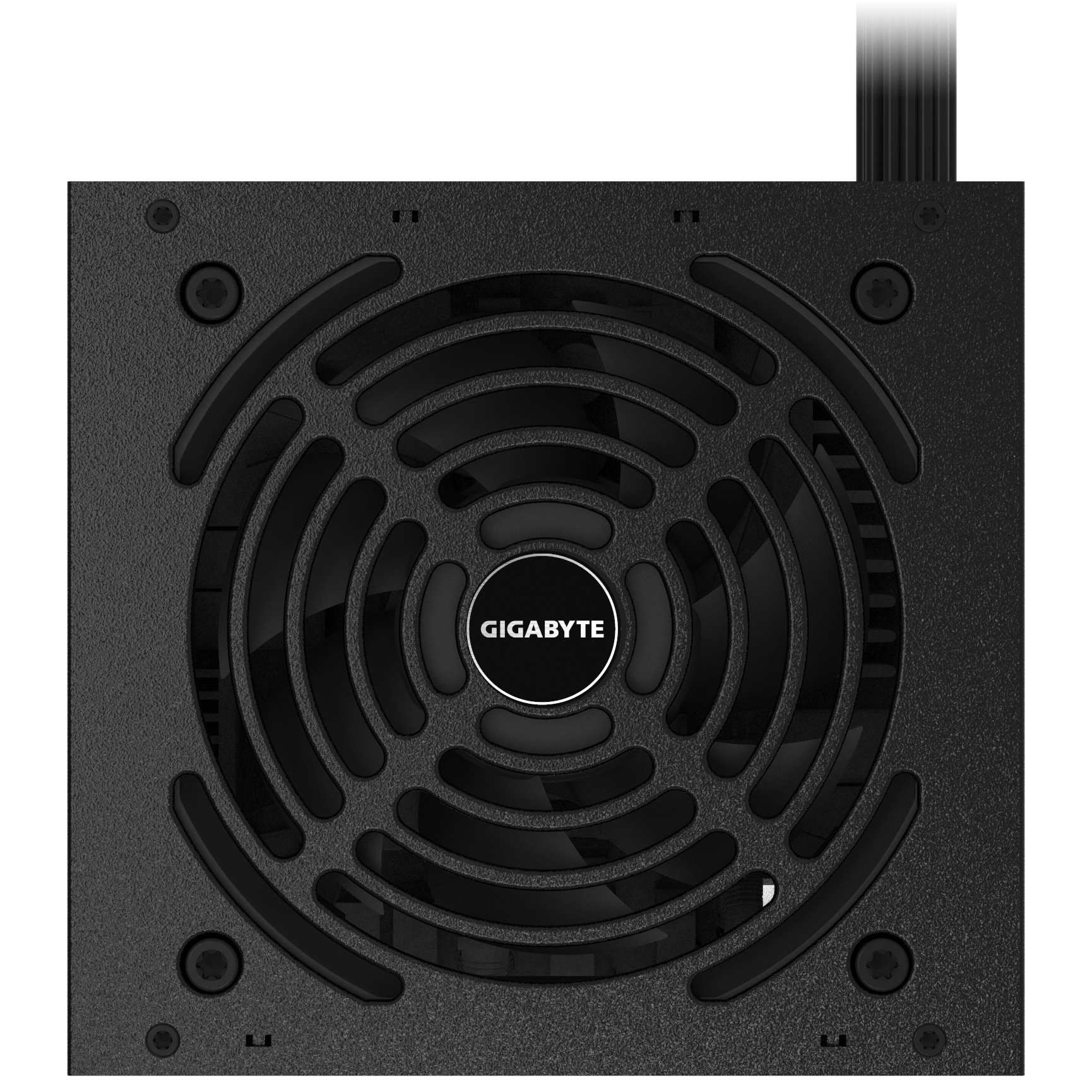

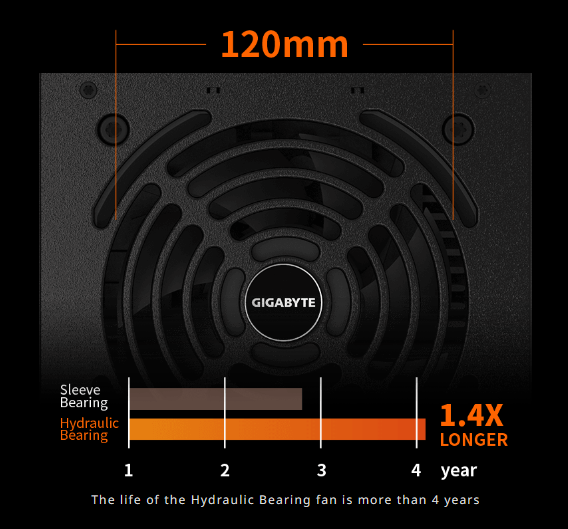

120mm Silent Hydraulic Bearing (HYB) Fan

120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable lifetime.

SINGLE +12V RAIL

Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

SPECIFICATIONS

• Model: P550B
• Type: Intel Form Factor ATX 12V v2.31
• PFC: Active PFC (>0.9 typical)

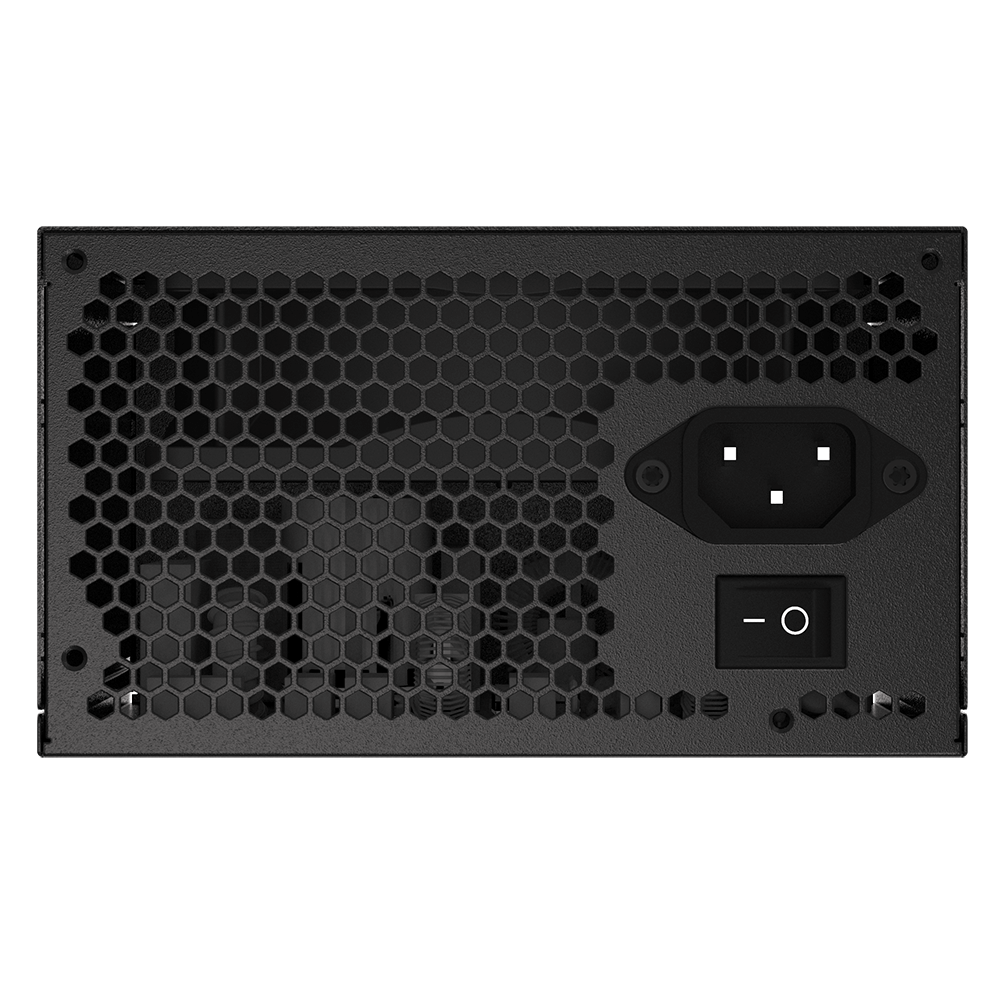

• Input Voltage: 100-240 Vac(full range)
• Input Current: 8-4 A
• Input Frequency: 60-50 Hz
• Output Capacity: 550W
• Dimension: 150 x 140 x 86 mm
• Fan Type: 120mm Hydraulic Bearing (HYB) Fan
• 80 PLUS: Bronze
• Efficiency: 85% at typical load
• MTBF: >100,000 hours
• Protection: OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal: 100-500ms
• Hold Up Time: >16ms
• Cable Type: Flat, All black
• Connectors:
  • ATX/MB 20+4 Pin x 1 : 550mm*1
  • CPU/EPS 4+4 Pin x 1 : 600mm*1
  • PCI-e 6+2 Pin x 2 : 550mm+150mm*1
  • SATA x 6 : 500mm+120mm+120mm*2
  • 4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm+120mm+120mm+120mm*1

Product Code: GP-P550B
Warranty: 1-Year Warranty
