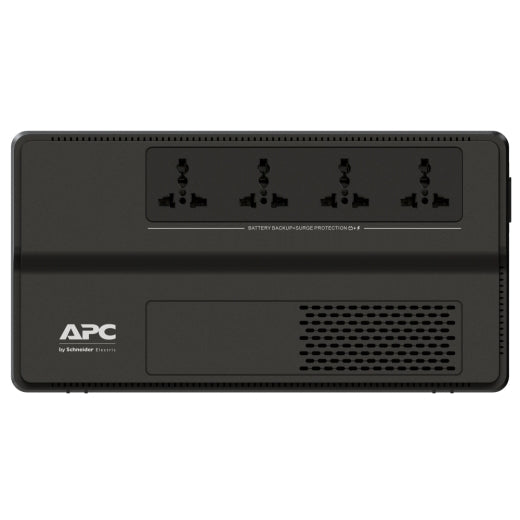

APC EASY UPS BV 1000VA, AVR, Universal Outlet, 230V

APC

  • Rs.45,100.00
    Unit price per
Shipping calculated at checkout.


APC EASY UPS BV 1000VA, AVR, Universal Outlet, 230V

Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

FEATURES

Output power capacity600 Watts / 1.0kVA
Output Connections(4) Universal Receptacle (Battery Backup)
Nominal Output Voltage230V
Nominal Input Voltage230V
Input ConnectionsNEMA 5-15P
Cord Length1.2meters

APC EASY UPS BV 1000VA, AVR, Universal Outlet, 230V
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

Includes: User manual
Automatic Voltage Regulation (AVR): Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Wall-mount holes: Allow flexibility for setup in tight locations and mounting on wall or other surfaces.

TECHNICAL SPECIFICATIONS

Output
Max Configurable Power (Watts)600 Watts / 1.0kVA
Output Frequency (sync to mains)50/60 Hz +/- 1 Hz Unsynchronised
TopologyLine interactive
Waveform typeStepped approximation to a sinewave
Transfer Time6 ms typical : 10 ms maximum

Input
Input frequency50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations170 - 280V
Number of Power Cords1

Batteries & Runtime
Battery typeLead-acid battery
Typical recharge time8hour(s)
Nominal Battery Voltage12 V
Expected Battery Life (years)3 - 5
EfficiencyView Efficiency Graph

Communications & Management
Control panelLED Status display with on line, on battery
Audible AlarmAlarm when on battery, distinctive low battery alarm, overload continuous tone alarm

Surge Protection and Filtering
Surge energy rating156Joules

Physical
Maximum Height93MM, 9.25CM
Maximum Width161MM, 16.05CM
Maximum Depth305MM, 30.5CM
Net Weight5.7KG
Shipping weight6.0KG
Shipping Height237MM, 23.7CM
Shipping Width143MM, 14.3CM
Shipping Depth373MM, 37.3CM
ColorBlack
SCC Codes10731304338250

Environmental
Operating Temperature0 - 40 °C
Operating Relative Humidity0 - 90 %
Operating Elevation0 - 2032.1meters
Storage Temperature-20 - 50 °C
Storage Relative Humidity0 - 90 %
Storage Elevation0 - 15240meters
Audible noise at 1 meter from surface of unit40.0dBA
Protection ClassIP20

Sustainable Offer Status
RoHS: Compliant

Product Code: BV1000I-MS
Warranty: 2-Year for Unit, 1-Year for Battery
